XGA32ACJ

XGA32ACJ

Articulated Mobile Elevating Work Platform is designed to satisfy the requirements of MEWP. This machine arranges intelligent control system and the humanized layout, lubrication-free design and easy operation and maintenance, which provide the multiple options and great safety.

Max. Working Height(ft)

51'10"

Max. Platform Height(ft)

45'3"

Precision and quality are the name of the game when it comes to XCMG’s XGA46J articulating boom lifts. The XGA46J provides versatility in handling complex jobs with a working height of over 50 feet and a reach of more than 25 feet. The XCMG XGA46J can also work at a grade of up to 45 degrees and with zero tail swing, you can get this boom lift into the tightest working conditions without breaking out a sweat. The XCMG XGA46J boom lift is powered by a Kubota 3 series 4-cylindar engine, with a rated power of 2700 rpm. This high-quality industrial diesel engine ensures the XGA46J can power through the toughest of conditions. And with an axle-based 4WD system, the XGA46J will have no problem reaching a work site that is off the beaten path. The XCMG XGA46J is well suited to handle jobs both indoors and outdoors, adding to its overall versatility. To top it all off, the XGA46J has multi-directional positioning and stretch functions, allowing you to precisely lift up to 770 pounds right to where you need it.

Features:

The XCMG XGA52ACJ Aerial Lift showcases an innovative “E” shaped articulated boom design, engineered to augment operational efficiency. Its compact structure allows for an impressively low turning radius of 4.7m, lending remarkable maneuverability to navigate through narrow spaces and execute complex tasks with ease.

Featuring a robust 48V, 420Ah battery, this aerial lift offers prolonged endurance to tackle long hours of operation. Its advanced two-wheel AC drive technology, coupled with a steering differential control system, remarkably diminishes tire wear and motor overload, ensuring a lasting performance.

The integration of AC pump control and proportional control technology equips users with a secure and stable operating experience. Its fully proportional control design enables precise and effective machine operation, accompanied by features like a tilt alarm for the lower frame, platform overload alarm, and emergency lowering capability for optimal safety.

Adhering to green principles, the XGA52ACJ Aerial Lift delivers zero emissions, low noise levels, and no-marking driving, making it ideal for indoor construction within clean environments. This machine not only combines efficiency and adaptability but also addresses environmental considerations, setting a new benchmark for aerial lifts.

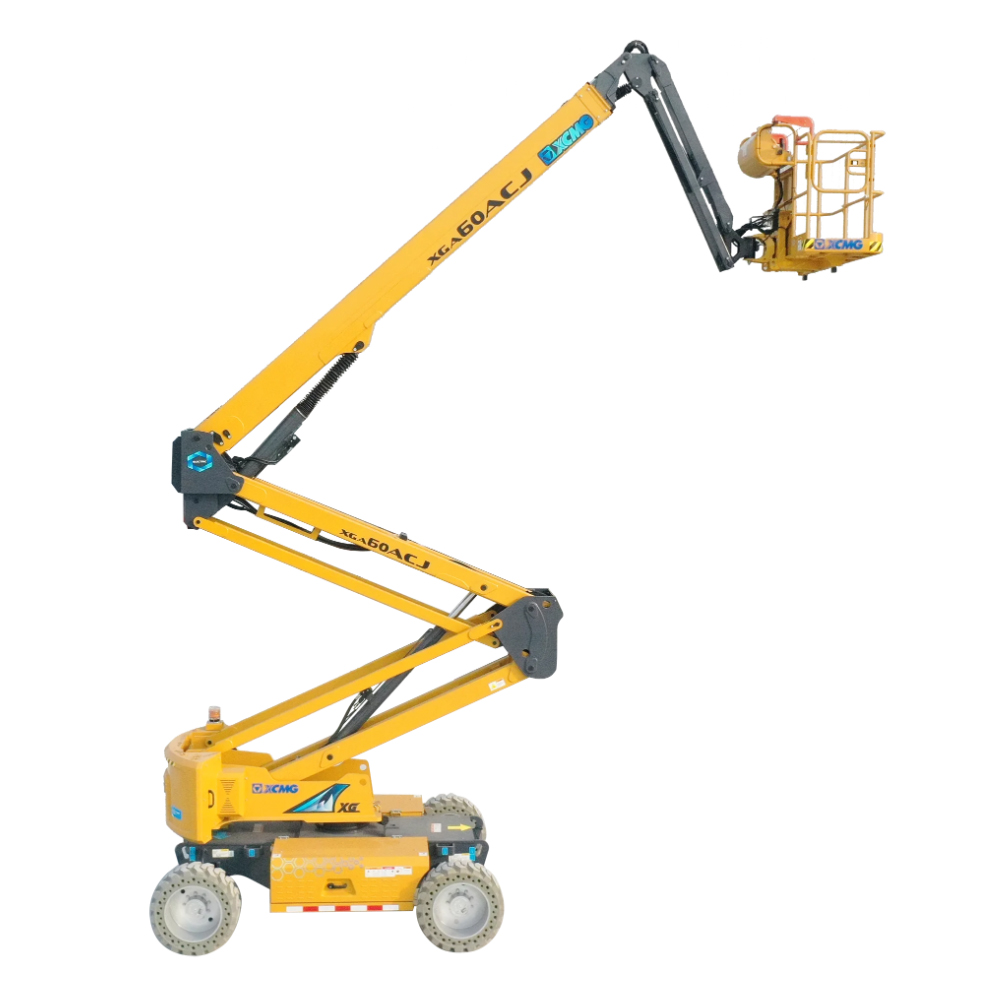

The XGA60ACJ mobile elevated work platform improves operating efficiency with the unique shape of its boom. The turning radius is very low, and it has flexible maneuverability that can challenge the narrowest of spaces. This machine has long endurance with its large capacity batter as well. The advanced four-wheel driving technology and steering differential control greatly reduce tire wear and motor overload rate. The combines application of AC pump control and proportional control technology provides users with a more secure and stable operating experience. The XGA60ACJ also features green environmental protections, zero emissions, low noise, no-marking driving, a tilt alarm, platform overload alarm, and emergency lowering.

Max. Working Height(ft)

67'7"

Max. Platform Height(ft)

61'

Max. Working Range(ft)

39'4"

The XCMG XGA60J boom lift is drive enabled, proportionally controlled and features a self-leveling platform. The full 360° turntable rotation increases maneuverability on worksites, and the active defending protection system and anti-hostile environment protection components of the XCMG XGA60J means operators are both safe and comfortable. The XCMG XGA60J may be the boom lift your work site needs to get the job done right. Highlights of this boom lift include being a dual load, and large load lift to meet differing working condition needs. The XCMG XGA60J stores compactly for your convenience, and features 4-wheel drive with a gradeability of 45% making it suitable for various grounds. The operating experience of the XCMG XGA60J is comfortable and the variable speeds are infinite.

Features of the XCMG XGA60J:

• Deutz Engine – Rated Power of 49.3 hp (36.4 kW)
• Power – 12V DC Auxiliary Power
• Platform Height – 61 ft 1 in (18.63 m)
• Platform Load Capacity – 350 kg
• Platform Rotation – 160°

The XCMG XGA80J boom lift is built to last. The axle-balanced system and 4-wheel drive make for excellent maneuverability around worksites, and the safety features are extensive, including a tilt alarm, an overload alarm, descent and motion alarm, horn, and emergency power unit and more. The XCMG XGA80J has many features, not the least of which is being the most fuel economic boom lift in the industry, and reduces fuel consumption by a whopping 30%. The control performance of the XGA80J has a customized valve control system, resulting in precision of control with each action, thereby greatly increasing action smoothness.

Features of the XCMG XGA80J:

• Deutz Engine – Rated Power of 74.3 hp (55.4 kW)
• Platform Rotation – 160°
• Platform Load Capacity – 564 lb (256 kg)
• Platform Height – 81 ft (24.6 m)
• Power – 12V DC Auxiliary Power
